KMT-5561826

KMT-5561826 by Kennametal

Call For Price

Part Number: 5561826
UPC:
Availability: Item is usually in stock, but we'll be in touch if there's a problem

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

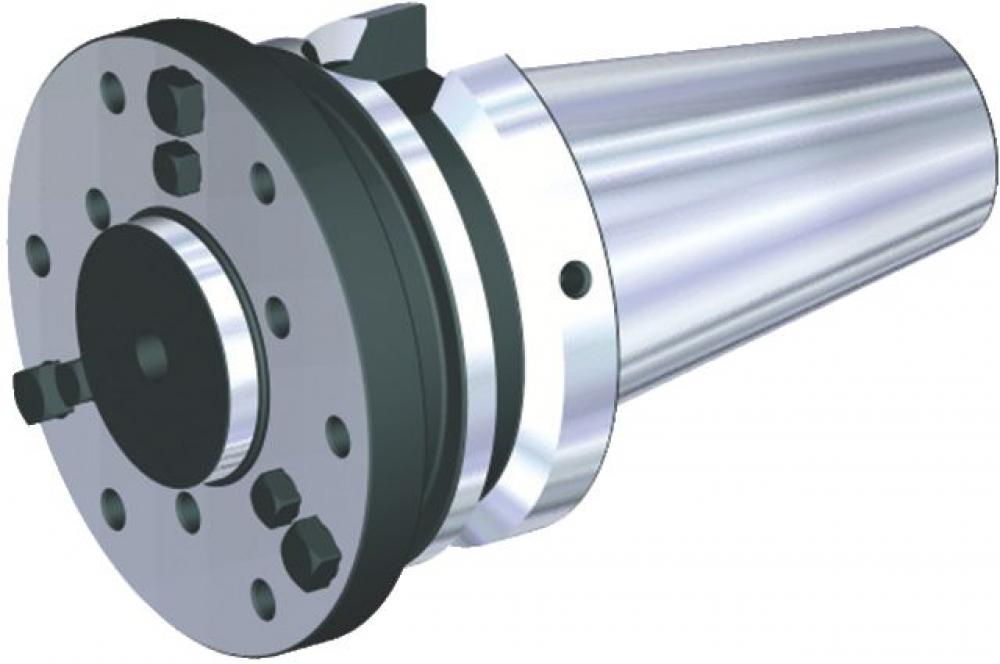

DV50 FLANGE MOUNT 3 AND 6 BOLT

Specifications

Details

Category:

Cutting Tools

Subcategory:

Cutting Tools Spare Parts and Blanks

Subtype:

Cutting Tool Spare Parts

Category Level 4:

Misc. Spare Parts

Adapter Style Machine Side:

DV-DIN69871

Adapter Style Machine Side-Marcom Calc:

DV-DIN69871 - DVStyBADw/CnDCnC

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

FLK - Flange Adapter Kenna

Coolant Supply:

Yes

Front End Tool Type:

FM Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

DV50FM63055M

MAR_PLATFORM_KMT:

DV50

[A]Coolant Hole Dia Inch:

0.8270

[A]Coolant Hole Diameter Metric:

21.0000

[CSMS]System Size Machine Side:

DV50

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

IN - Inch

[D1]Adapt/Shank/BoreDiaWKPS In:

1.9700

[D1]Adapt/Shank/BoreDiaWKPS mm:

50.0000

[D2]Body Dia 1 Workpce Side In:

4.6460

[D2]Body Dia 1 Workpce Side mm:

118.0000

[D41]Bolt Circle 2 Inch:

3.8190

[D41]Bolt Circle 2 Metric:

97.0000

[D4]Bolt Circle 1 Inch:

2.6380

[D4]Bolt Circle 1 Metric:

67.0000

[D5]Body Dia. Machine Side In:

3.8370

[D5]Body Dia. Machine Side mm:

97.4500

[D]Adapter/Shank/Bore Dia Inch:

2.7500

[D]Adapter/Shank/Bore Dia mm:

69.8500

[FLGT]Flange Length Metric:

15.8750

[G1]Bolt Circle Thd Size:

M8X1.25

[G3]CL_CONN_THD_SIZE_MS_INT:

M24X3

[H1] Centerline Height Inch:

0.0000

[H1] Centerline Height Metric:

0.0000

[L1]Gage Length 1 Inch:

2.1650

[L1]Gage Length 1 Metric:

55.0000

[L2]Usable Length Inch:

2.1650

[L2]Usable Length Metric:

55.0000

[L4] Flange-Front End Dist In:

1.4150

[L4] Flange-Front End Dist mm:

35.9500

[LF]Functional Length Inch:

2.1650

[LF]Functional Length Metric:

55.0000

[LPR]Protruding Length Inch:

2.1650

[LPR]Protruding Length Metric:

55.0000

[LS] Shank Length Inch:

4.1260

[LS] Shank Length Metric:

104.8000

[LTA]Tool Assembly Length Inch:

2.1650

[LTA]Tool Assembly Length mm:

55.0000

[L] Overall Length Inch:

6.4800

[L] Overall Length Metric:

164.6000

Manufactured By:

Kennametal
